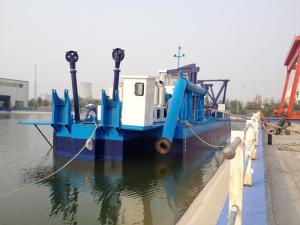

10-inch suction sand pumping boat dredged 10 meters deep for small rivers

Brand Name : yongsheng

Model Number : YSJSD250

Place of Origin : shandong

MOQ : 1

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Delivery Time : 40days

Packaging Details : container

Capacity : 150-180m3/h

Water flow : 900m3/h

Dredging depth : 10m

Discharge distance : 800m

Main engine : 294KW

Auxiliary engine : 88KW

Fuel consumption : 60L/H

Dimension(L*W*H) : 17*5*1.2m

Contact Now

10-inch suction sand pumping boat dredged 10 meters deep for small rivers


Product description

A sand pumping ship (also called a sand suction ship or dredger) is a special operation ship used for underwater sand

mining, river dredging, land reclamation and other projects. It extracts the underwater sand mixture through a powerful

pumping system and transports it to a designated location. It is widely used in water conservancy projects, port construction,

mineral mining and other fields.


product parameters

Model

Capacity

Water flow

Dredging depth

Discharge distance

Main engine

Auxiliary engine

Fuel consumption

Dimension(L*W*H)

YSJSD150

40-50m3/h

250m3/h

6m

500m

120KW

/

18L/H

10*3.8*1

YSJSD200

80-100m3/h

500m3/h

8m

500m

176KW

60KW

40L/H

14*4.5*1.2m

YSJSD250

150-180m3/h

900m3/h

10m

800m

294KW

88KW

60L/H

17*5*1.2m

YSJSD300

200-250m3/h

1400m3/h

10m

1000m

456KW

110KW

80L/H

20*6*1.5m

YSJSD350

300-400m3/h

2000m3/h

12m

1500m

735KW

220KW

120L/H

24*6.6*1.6m

YSJSD400

400-500m3/h

2600m3/h

14m

1500m

882KW

330KW

150L/H

24*7.2*1.8m

YSJSD450

500-600m3/h

3000m3/h

14m

1500m

1103KW

406KW

200L/H

26*7.6*2m

YSJSD500

600-700m3/h

3800m3/h

14m

1500m

1250KW

456KW

240L/H

26*7.6*2m

The above technical parameters are for reference only,specific device configuration depends on the conditions of each

project,customer and technical requirements.



10-inch suction sand pumping boat dredged 10 meters deep for small rivers



Working Principle
The core of the sand pumping ship is the "sand suction pump + pipeline transportation" system

Broken mud layer: The bow is equipped with a high-pressure water gun or a rotary auger to break up the compacted sand layer on

the riverbed/seabed into flowing mud.

Pumping mud: The centrifugal mud pump generates negative pressure and extracts a mixture of mud and water (mud concentration

is usually 20%-40%) through a sand suction pipe extending into the bottom of the water.

Pipeline transportation: The mud is transported to the shore yard, sand transport ship or reclamation area through the sand discharge

pipeline, and the transportation distance can reach several kilometers (relay pump pressure is required).

Separation of mud and sand: The end is separated by a vibrating screen, cyclone or natural sedimentation to separate sand (construction

sand) and silt (for land reclamation or abandonment).



Application
River/port dredging: remove silt to ensure smooth waterways

Reservoir desilting: prevent siltation and extend the life of reservoirs

Sand mining: mining of sand for construction

Land reclamation: land reclamation by filling, such as coastal development zone construction
