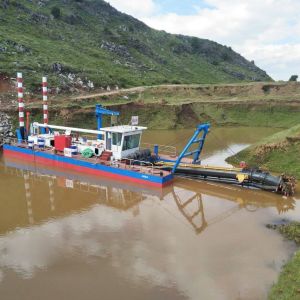

Cutter Suction Dredger Boat with Large Production Capacity
cutter suction dredger is widely used for river lake port and inside waterways etc . cutter suction dredger can process
sand mud gravel from all kinds of dredging project . cutter suction dredger adopts good quality device to achieve the
highest performance .let the customer spends the lowest cost to Get the highest profit Configuration of Cumins diesel
engine ( Otherwise can provide carter Weichai and others diesel engine brand )Shijiazhuang slurry pump and hydraulic
pump from the America or Germany . all configurations can reach the low failure low fuel consumption high capacity
and high efficiency.
| Model list for hydraulic cutter suction dredger |
| Model | Inch | Diameter pipe | Water flow | Solid
capacity | Total power | Dredging depth | Discharge distance |
| YSCSD150 | 6 Inch | 150 mm | 260 m3/h | 30 cbm/h | 102 KW | 4m | 600 m |
| YSCSD200 | 8 Inch | 200 mm | 600 m3/h | 80 cbm/h | 213 KW | 6m | 800 m |
| YSCSD250 | 10 inch | 250 mm | 1,000 m3/h | 160 cbm/h | 367 KW | 8m | 1,100 m |
| YSCSD300 | 12 inch | 300 mm | 1,500 m3/h | 240 cbm/h | 591 KW | 10 m | 1,100 m |
| YSCSD350 | 14 inch | 350 mm | 2,400 m3/h | 360 cbm/h | 971 KW | 12m | 1,200 m |
| YSCSD400 | 16 Inch | 400 mm | 3,000 m3/h | 500 cbm/h | 1,057 KW | 14m | 1,400 m |
| YSCSD450 | 18 Inch | 450 mm | 3,500 m3/h | 700 cbm/h | 1,462 KW | 15m | 1,500 m |
| YSCSD500 | 20 Inch | 500 mm | 3,800 m3/h | 760 cbm/h | 1,648 KW | 15m | 1,600m |
| YSCSD600 | 24 Inch | 600 mm | 6,000 m3/h | 900 cbm/h | 2,511 KW | 15m | 1,800 m |
| YSCSD650 | 26 Inch | 650 mm | 7,000 m3/h | 1,400 cbm/h | 3,705 KW | Max.18m | 1,800m |

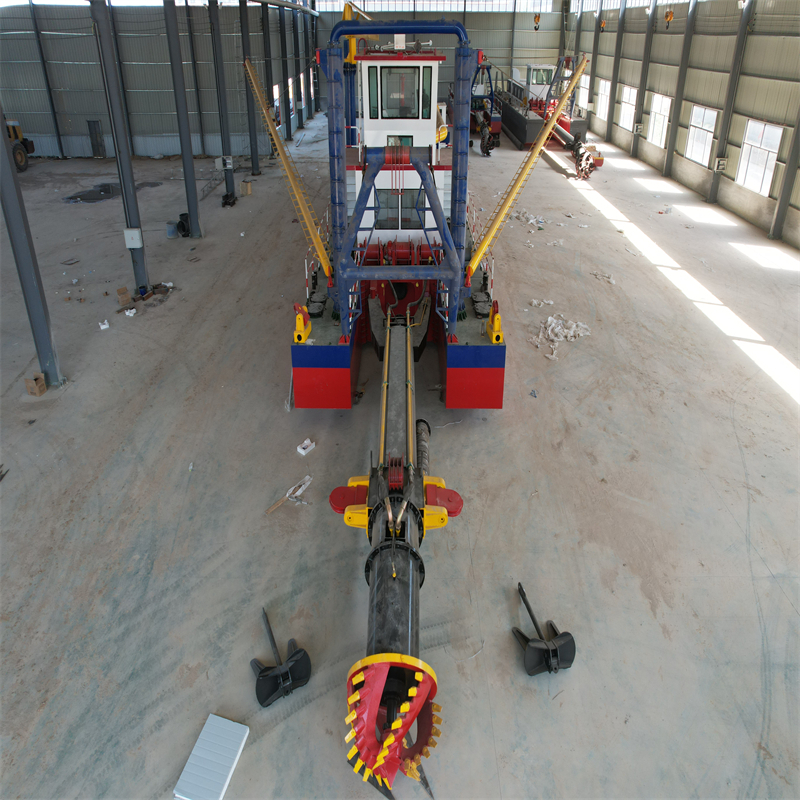

The main structure of a cutter suction dredger includes the hull, cutter, suction pipe, pump body, and discharge pipe.
The cutter is a key component of a cutter suction dredger, usually installed at the bow or side of the ship. By rotating
the cutter, the sediment at the bottom of the water is crushed and mixed with water to form mud. The suction pipe
is used to suck mud into the pump body, which transports the mud to the discharge area through the discharge pipe.
Our service :
*Our factory can offer the long time after -sale service and free spare parts for customers
*Our factory can offer the experienced installation team for installation and training the local workers
*we can according to the request of customers to choose the reasonable and practical device
*we can provide the professional and quick solution for any problem
*we have the professional technician regularly to follow up customers
*we can sign all kinds of agreement to ensure the customers right
FAQ:
Need for reply:
1. How many cubic meter per hour for the clear water flow?
2. How many meters for the dredging depth?
3. How many meters for the discharge distance?
4. Will you use the dredger in the river,lake,sea or channel?
